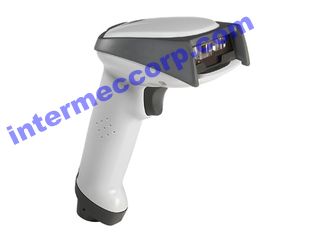

HHP
3800r条码扫描器
HHP 3800r设置手册下载
HHP
3800r具有超长阅读距离的3800r是平台式POS扫描枪的辅助设备,能减少在收银台处搬动大件或大量商品的需要.
主要特点
3800r特别为零售业的应用而设计,将扫描性能、连接性和耐用性完美地结合在了一起。
内置式零售机接口—整合接口组合,能支持所有零售系统的接口,便于系统整合和灵活配置。
为明日科技预留空间—支持零售业各种现有或新兴条码,保障您的投资利益。
Features
Superior Read Range:
Imaging technology now extends the read range out to 24? (610 mm) on the bar codes used in retail applications
Fast and Aggressive Decode:
Even on poorly printed or damaged codes, the 270 scans per second scan rateand software digitizer quickly processes the data and transmits it to your application
Durable:
Built to last, there are no moving parts to wear out. Full impact resistant bumpers and a 5 year warranty make the 3800r one of the toughest scanners on the marketReads Emerging Codes that will be Part of
Tomorrow!ˉs
Solutions:
Supports the EAN!¤UCC system,
including GTIN, EAN/UCC-14, and GS1 DataBar
Connectivity:
Supports all common interfaces: keyboard
wedge, TTL RS232, IBM retail, USB, wand emulation,
HHLC, and True RS232
Technical Speciications
Operational
Light Source Visible Red LED 630 nm
Visual Indicators Green = good read
Host System Interfaces USB, True RS232, TTL level RS232, Keyboard Wedge, IBM 46xx (RS485), Light Pen (Wand) Emulation,Laser Emulation
Mechanical
Dimensions (LxWxH) 135 mm x 81 mm x 157 mm (5.3? x 3.2? x 6.2?)
Weight 184 g (6.5 oz)
Electrical
Input Voltage 4.5 - 12 VDC
Operating Power (typical) 1.2 W (235 mA @ 5 V); 1.7 W (145 mA @ 12 V)
Standby Power (typical) 430 mW (86 mA @ 5 V); 780 mW (65 mA @ 12 V)
DC Transformers Class 2: 5 VDC @ 2.4 A
LED Class Class 1: IEC60825-1, EN60825-1
EMC FCC Part 15, ICES-003, EN55022 Class B
Environmental
Operating Temperature 32!aF to 122!aF (0!aC to 50
Storage Temperature -40!aF to 140F (-40!aC to 60!
Humidity 0 to 95% relative humidity, non-condensing
Drop Designed to withstand 1.8 m (6!a) drop
Environmental Sealing IP41
Light Levels 70,000 Lux (6,503 foot-candles)
|
